Multi Functional Three Axis Gimbal , Target Automatic Tracking
Thermal Camera Gimbal
Three-AXIS Thermal Payload

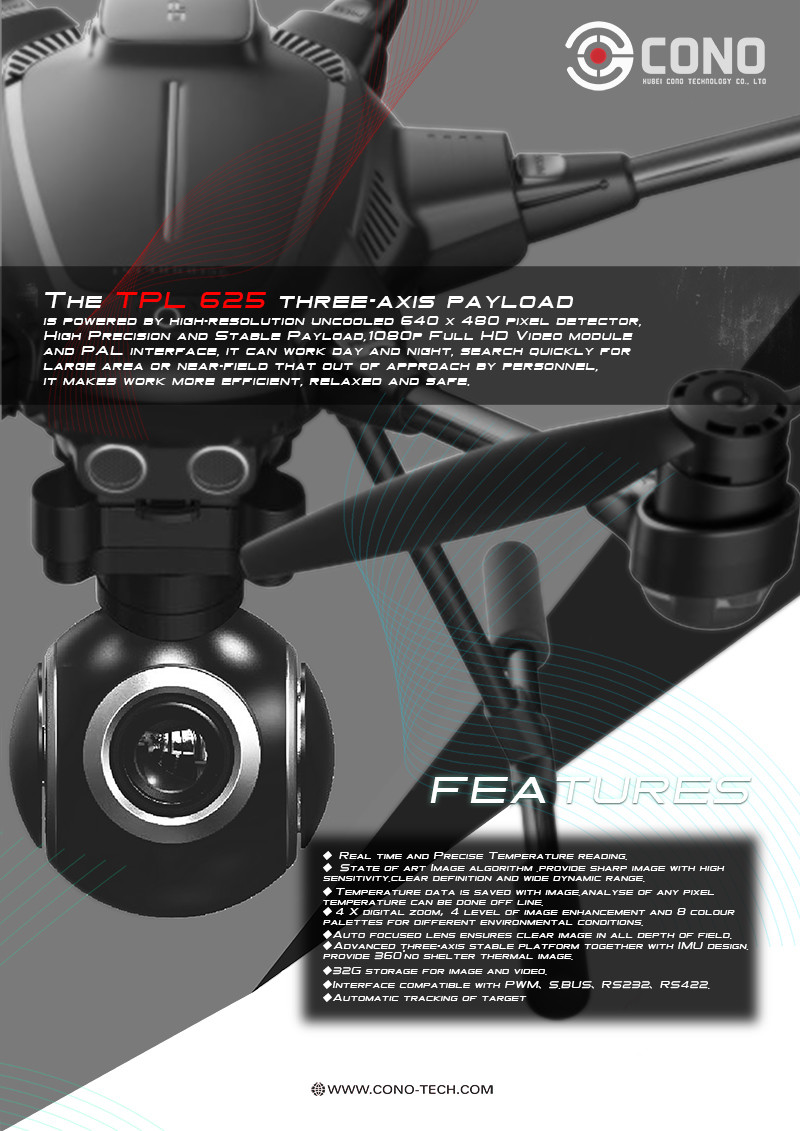

The TPL625 three-axis payload is powered by high-resolution
uncooled 640 x 480 pixel detector, High Precision and Stable
Payload,1080p Full HD Video module and PAL interface, it can work
day and night, search quickly for large area or near-field that out
of approach by personnel, it makes work more efficient, relaxed and
safe.
Product Details
● Real-time and Precise Temperature reading
● State of art Image algorithm, provide a sharp image with high
sensitivity, clear definition, and wide dynamic range
● Temperature data is saved with the image, analyses of any pixel
temperature can be done offline.
● X digital zoom,4 levels of image enhancement and 8 color
palettes for different environmental conditions；
● Auto focused lens ensures clear image in all depth of field
● Advanced three-axis stable platform together with IMU design,
provides 360°no shelter thermal image.
● 2G storage for image and video
● Interface compatible with PWM, S.BUS, RS232, RS422
● Automatic tracking of a target
Technical Data Sheet of CONO TPL625 |
| TPL625 |
Detector |
|
Resolution Pixels | 640*480 |
Focal length | 25mm |
Frequency | 50Hz |
Focus | Motor Focus |
Temperature |
|
Temperature Range | -20°C-150°C |
Temperature Accuracy | ≤2℃ or 2% |
Colour Palette | 8 Options |
Digital Zoom | ×2,×4 |
Image Storage | Full temperature data |
Video Storage | Full temperature data |
Servo |
|
Azimuth angle | -180°～+180° |
Vertical Rotation Angle | -120°～+60° |
Rolling angle | -60°～+60° |
System |
|
Image Tracking | Automatic target recognition
and tracing(optional) |
Voltage | AC 20V～36V |
Power consumption | Power consumption AC:≤15W |
Weight | ≤800g |
Size | 133x114x177mm |
Interface |
|
Control Interface | RS422/RS232/PWM/S.BUS |
Video Interface | HDMI / PAL |
Storage Interface | Mini SD card 32G |
Environmental |
|
Working Temperature | -20℃～＋55℃ |
Storage Temperature | -40℃～＋60℃ |
