Multi Functional Thermal Imaging Scope Lightweight IP67 Waterproof
Rated
Thermal Handheld Monocular
The Multi Functional Thermal Imaging Scope NightSeer Thermal Monocular turns up the heat on hunting,
surveillance and search & rescue with lightweight heat-detecting
convenience.
Fogproof, dustproof and IP67 waterproof rated protection and a
frost-resistant OLED display keep the NightSeer Thermal Handheld Monocular performing flawlessly in extreme conditions with temperatures
ranging from -40° to 60°.

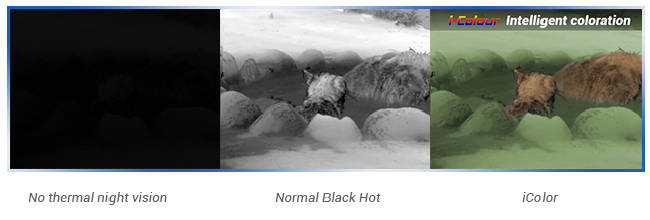

The Thermal Handheld Monocular NightSeer 335/350 boasts 3 color palettes, including popular “white
hot”, “black hot” and intelligent coloration. Adult-size heat
signature detection up to 1350m; 1.83X magnification 50Hz refresh
rate; Unique one thumb operation and ultra-easy user interface.
The NightSeer Thermal Monocular even includes stadiametric
rangefinding, analog video out pack and convenient carrying case.
Thermal Imaging Scope Advantage :
■ Designed for quick and easy to use: switch-on and ready-to-use
■ Compact and lightweight camera system
■ Ergonomic design with five position thumb stick for one hand
operation
■ Intelligent coloration for better recognition of targets
■ High image frequency of 50Hz, no ITAR
■ Stadiametric rangefinding reticle makes determining precise
distances fast, easy, reliable and repeatable
■ Fully-functional wireless control
■ Image/video storage and WIFI sharing (optional)
| Technical Data Sheet of Thermal Imager NightSeer335/350 Series |
| NS335-H |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 35mm, F/1.1 |
| Magnification, X | 1.83 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 15mm |
| Dioptre Adjustment, D | ±5 |
| FOV | 10.6°×8.0° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Detection Range (1.7m target) | 1350 |
| Recognition Range (1.7m) | 450 |
| Detection Range (2.3m target) | 1800 |
| Recognition Range (2.3m) | 600 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6～7.2 |
| External Power Supply | 5v USB |
Operation Time on a battery set
(standard version),h | 5 |
Operation Time on the external battery pack
(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25℃～+50℃ |
| Storage Temperature | —40℃～+70℃ |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 368 |
| Dimension, mm | 150×65×67 |
QUALITY CONTROL
We understand that, in some cases, lives may depend on the
performance of our products, that is why every unit that leaves our
facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the
very best optoeletronics devices on the market.
