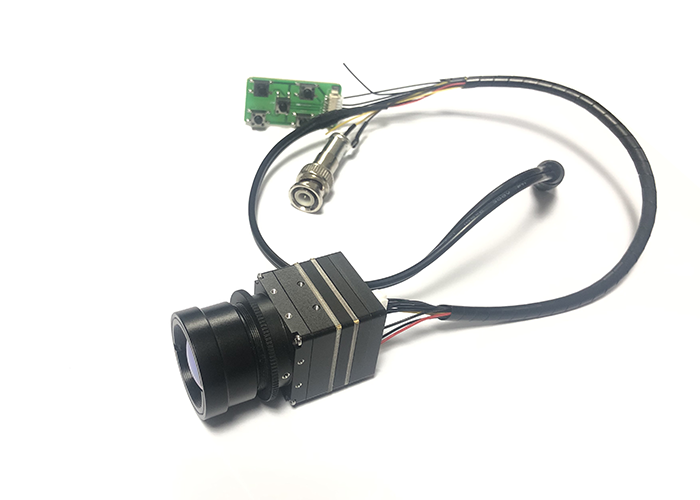

    OEM Thermal Imaging Core Thermal Camera Module With High Performance

    Ask Lasest Price
    Brand Name : CONO
    Model Number : AXE
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

    OEM Thermal Imaging Core Thermal Camera Module With High Performance

    OEM Thermal Imaging Core Thermal Camera Module With High Performance

    AXE series is the miniature thermal imager designed for very low-powered cost-sensitive OEM applications. An excellent night vision capability in a package that can easily be integrated into your product or application.


    Details:

    • Specially designed module for a rifle scope, handheld, and OEM
    • 4- 12V wide power supply range to meet the power supply requirements of various battery combinations
    • Micro OLED interface (MDPO3BC) directly interfaces with OLED without adapter plate
    • 1024 x 768 full-screen graphical menu, which can be customized and changed
    • Support menu interface, partition online download
    • Power consumption (including OLED) is 1.2 W, and the operation time of 2 CR123 batteries exceeds 5 hours
    • Non-polar power supply, can work in both positive and negative connection, which is convenient to replace the battery at night
    • With digital video output function and serial port control function, and can be used to expand various equipment
    • With I0 and serial port control functions, it is convenient for users to integrate
    • ULIS GEN2 detector with excellent image processing algorithm, low image noise and wide dynamic range
    AXE 6 Specification
    AU VoxAUMini
    Detector
    Resolution640*512640*480640*480
    Pitch17μm17μm17μm
    Spectral range8-14μm8-14μm8-14μm
    NETD40mk50mk50mk
    Image Processing
    Frame Rate30Hz30Hz30Hz
    NUCcalibration with shuttleshuttershutterless
    Digital Zoom×2,×4×2,×4, PIP×2,×4
    Palette10 optional(can be customized)10 optional(can be customized)

    10 optional(can be

    customized)

    Image Flip2 optional4 optional2 optional
    Startup timeless than 10 secondsless than 10 secondsless than 10 seconds
    Startup imageCan be customizedCan be customizedCan be customized
    Menu and informationGUI(Can be customized)GUI(Can be customized)GUI(Can be customized)
    Image EnhancementDDEDDEDDE
    Contrast and BrightnessAGCAGCAGC
    Image stabilization timeless than 6 secondless than 6 secondless than 6 second
    Image Presentation
    Video outputPal/NTSC optionalPal/NTSC optional
    Digital VideoCVBS/SDIStandard 0.39" MicroOled/LVDS8-bit BT656
    Module control
    ControlRS232RS232/usb/5 keys optionalRS232
    Power supply
    Required Voltage4.5-15VDC3.6-12VDC4.5-15VDC
    Power consumption1.3W1.3W1W
    Environmental Compatibility
    Operating Temperature-40℃-60℃-40℃-60℃-40℃-60℃
    Storage Temperature-45℃-70℃-45℃-70℃-45℃-70℃
    Physical Characteristics
    Size41mm x 41mm x 50mm38mm×38mm×34mm28mm x28mm x 37mm
    Weight133g60g(without lens)35g
    lens options4mm/9mm/13mm/19mm/25mm/45mm35mm/50mm

    4mm/9mm/13mm/

    19mm/25mm/45mm
