Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption

    Buy cheap Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption from wholesalers

    Buy cheap Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption from wholesalers
    • Buy cheap Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption from wholesalers

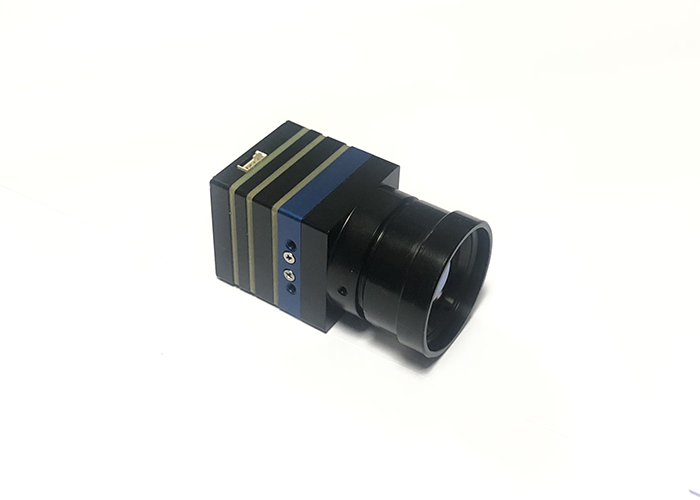

    Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption

    Ask Lasest Price
    Brand Name : CONO
    Model Number : AXE
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

    Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption

    Lightweight Night Vision Thermal Imaging Camera Module Super Low Power Consumption

    The thermal cores are designed for easy and efficient integration into higher-level assemblies, systems, and platforms. They offer an unmatched set of features, making them well-suited for thermal sights demanding.


    Features:


    ■ Shutterless thermal technology
    ■ Compact Size
    ■ Lightweight
    ■ Short time to image
    ■ Advanced WDR image processing
    ■ Continuous digital zoom
    ■ Adjustable crosshair
    ■ Multiple lens available
    ■ User-defined symbology supported
    ■ Auto-focus supported
    ■ -40~ +75℃ operating temp range supported


    AXE 6 Specification
    AU VoxAUMini
    Detector
    Resolution640*512640*480640*480
    Pitch17μm17μm17μm
    Spectral range8-14μm8-14μm8-14μm
    NETD40mk50mk50mk
    Image Processing
    Frame Rate30Hz30Hz30Hz
    NUCcalibration with shuttleshuttershutterless
    Digital Zoom×2,×4×2,×4, PIP×2,×4
    Palette10 optional(can be customized)10 optional(can be customized)10 optional(can be customized)
    Image Flip2 optional4 optional2 optional
    Startup timeless than 10 secondsless than 10 secondsless than 10 seconds
    Startup imageCan be customizedCan be customizedCan be customized
    Menu and informationGUI(Can be customized)GUI(Can be customized)GUI(Can be customized)
    Image EnhancementDDEDDEDDE
    Contrast and BrightnessAGCAGCAGC
    Image stabilization timeless than 6 secondless than 6 secondless than 6 second
    Image Presentation
    Video outputPal/NTSC optionalPal/NTSC optional
    Digital VideoCVBS/SDIStandard 0.39" MicroOled/LVDS8-bit BT656
    Module control
    ControlRS232RS232/usb/5 keys optionalRS232
    Power supply
    Required Voltage4.5-15VDC3.6-12VDC4.5-15VDC
    Power consumption1.3W1.3W1W
    Environmental Compatibility
    Operating Temperature-40℃-60℃-40℃-60℃-40℃-60℃
    Storage Temperature-45℃-70℃-45℃-70℃-45℃-70℃
    Physical Characteristics
    Size41mm x 41mm x 50mm38mm×38mm×34mm28mm x28mm x 37mm
    Weight133g60g(without lens)35g
    lens options4mm/9mm/13mm/19mm/25mm/45mm35mm/50mm4mm/9mm/13mm/19mm/25mm/45mm

    RESEARCH & DEVELOPMENT


    Hubei Cono Technology Co.,Ltd is driven to improve our technologies with our own self-developed methods of R&D. We gather input from our clients which helps us to gauge what is most important to the end-user. Our Engineers and Assemblers work together to create better, more useful devices while developing new methods for the construction and testing of future devices.
