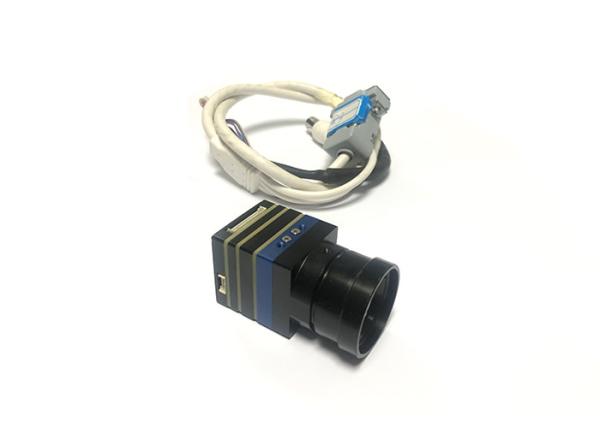

    No Shuter Thermal Imaging Module For Night Version Thermal Imaging Sight

    Ask Lasest Price
    Brand Name : CONO
    Model Number : AXE
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

    No Shuter Thermal Imaging Module For Night Version Thermal Imaging Sight

    No Shuter Thermal Imaging Module For Night Version Thermal Imaging Sight

    The thermal core comes with a compatible lens and high resolution module for OEM thermal imaging solutions. It can be integrated with a complete thermal imaging system per customer request.


    Advantages:


    High Shock Resistance

    Boresight Adjustable Reticules

    Digital Output for OEM Integration

    Optional digital interface

    -40°C to plus 70°C Operating Temperature Range Option

    Micro Power Consumption

    Micro Weight

    Micro Size

    No Moving Parts

    Silent Operation

    High resolution and thermal sensitivity


    AXE 6 Specification
    AU VoxAUMini
    Detector
    Resolution640*512640*480640*480
    Pitch17μm17μm17μm
    Spectral range8-14μm8-14μm8-14μm
    NETD40mk50mk50mk
    Image Processing
    Frame Rate30Hz30Hz30Hz
    NUCcalibration with shuttleshuttershutterless
    Digital Zoom×2,×4×2,×4, PIP×2,×4
    Palette10 optional(can be customized)10 optional(can be customized)10 optional(can be customized)
    Image Flip2 optional4 optional2 optional
    Startup timeless than 10 secondsless than 10 secondsless than 10 seconds
    Startup imageCan be customizedCan be customizedCan be customized
    Menu and informationGUI(Can be customized)GUI(Can be customized)GUI(Can be customized)
    Image EnhancementDDEDDEDDE
    Contrast and BrightnessAGCAGCAGC
    Image stabilization timeless than 6 secondless than 6 secondless than 6 second
    Image Presentation
    Video outputPal/NTSC optionalPal/NTSC optional
    Digital VideoCVBS/SDIStandard 0.39" MicroOled/LVDS8-bit BT656
    Module control
    ControlRS232RS232/usb/5 keys optionalRS232
    Power supply
    Required Voltage4.5-15VDC3.6-12VDC4.5-15VDC
    Power consumption1.3W1.3W1W
    Environmental Compatibility
    Operating Temperature-40℃-60℃-40℃-60℃-40℃-60℃
    Storage Temperature-45℃-70℃-45℃-70℃-45℃-70℃
    Physical Characteristics
    Size41mm x 41mm x 50mm38mm×38mm×34mm28mm x28mm x 37mm
    Weight133g60g(without lens)35g
    lens options4mm/9mm/13mm/19mm/25mm/45mm35mm/50mm4mm/9mm/13mm/19mm/25mm/45mm


    HUBEI CONO TECHNOLOGY CO.,LTD is an innovative industry leader and provider of professional quality, competitively priced optoelectronic products for nature, law enforcement and surveillance applications.
