Human Temperature Detecting System Fever Scanner Thermal imaging
The Human Temperature Detecting System is designed for mass
screening of public areas; using IR technology. It finds individual
targets with elevated temperatures.
Features
Quick Detection:
The measured stream of people passes through the detection area,
and the temperature of the human body can be detected in 0.5
seconds
.
Non-contact Remote Measurement:
The body temperature of the tested person is measured at a height
of 4-9 meters, which will notJ easy to cause antipathy and panic of
the tested person. Monitors can be located further away from the
console to avoid cross infection.
Sensitivity:
The temperature resolution of the instrument can reach ±0.3°C,
which is suitable for searching and detecting people at a long
distance in areas with large human flow, and accurately finding out
patients with fever.
Concealment:
The temperature measurement can be carried out without the complete
knowledge of the detected object, which is beneficial to ensuring
the normal working order of important departments such as airports,
ports, railway stations and so on.
Good UI Interactive Design of Software:
The software has greatly improved the user experience, with
multi-visual presentation, arbitrary resolution display, and
support for animation effect prompt. It has strong operability,
affinity, scientific and technological sense, etc.
Standard configuration
Infrared Thermal Imager, Computer, Blackbody, Bracket

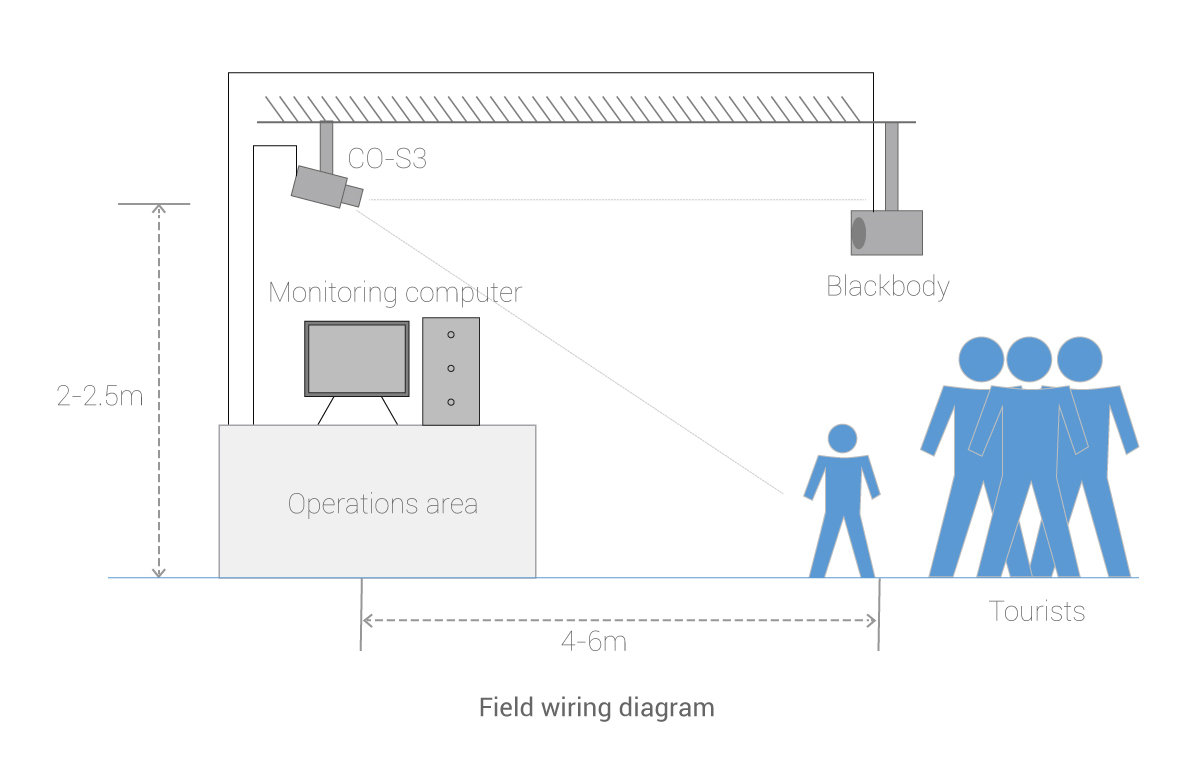

Effect display
The infrared thermal imaging temperature measurement technology of
the CO-S3 intelligent rapid quarantine body temperature screening
instrument adopts a high-resolution uncooled focal plane detector
(384 X288), the temperature measurement accuracy is as high
as±0.3°C, the image frame can reach 25Hz.It has reached the
international advanced level in technology and is mature and
reliable.
Application scene
Subway, airport, wharf, station, hospital, shopping mall and other
places with large traffic.
