Brand Name : | CONO |
Model Number : | COS3 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 1000 PCS PER YEAR |
Delivery Time : | 7-30 Days |
Certification : | ISO,CE |

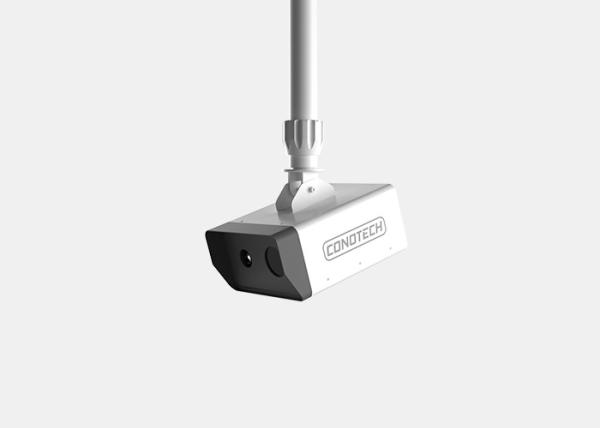

Thermal Temperature Screening Thermograph Camera for Body Temperature
The thermal imaging camera is high-precision thermal imaging, which can measure the temp of the target object online in real-time and check the over-temp condition.
Highlights:
Double-light imaging
Acousto-optic alarming
AI identification
Non-inductive temperature measurement
High-precision temperature measurement
Face imaging capture
Parameter adjustment
Unattended
Standard configuration
Specification | |
Thermal imager | |
Detector type | Uncooled Focal Plane Microbolometer |
Resolution | 384×288 |
Pixel pitch | 17μm |
Wavelength range | 8~14μm |
NETD | <40mK |
Rate | 25Hz |
IR Lens | 9.7mm/1.0 |
IR FOV | 40°×30° |
Visible Resolution | 1920×1080 |
Visible FOV | 41°×22.2° |
Blackbody | |
Working temperature | 5℃~60℃ |
Radiation surface | 80mm×80mm |
Temperature resolution | 0.1℃ |
Accuracy | ±0.2℃(35℃) |
Stability | ±(0.1~0.2)℃/30min |
![]() |
