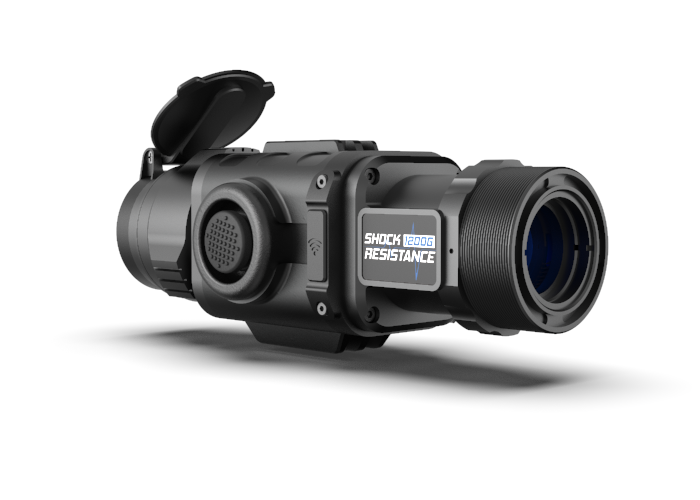

35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life

    Buy cheap 35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life from wholesalers

    Buy cheap 35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life from wholesalers
    • Buy cheap 35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life from wholesalers

    35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life

    Ask Lasest Price
    Brand Name : CONO
    Model Number : NS335C
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

    35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life

    35mm 384×288 Resolution Handheld Thermal Scope NS335C Objective Lens Long Life

    Short description

    • 50Hz frame rate

    • 35mm objective lens

    • Field of view: 10.6°×8.0°

    • 384x288 pixels detector with 17μm pitch

    • OLED display with1024x768 pixel resolution

    • 1x times optical magnification

    • 2x/4x/PIP digital zoom

    • Battery life to 5 hours., Continuous operation

    • 2x CR123 batteries

    • 150×61×67mm


    Technical Data


    Technical Data Sheet of NS3 Series
    NS335-CNS350-C
    Detector
    Resolution384×288
    Frame Rate50Hz
    Pitch17um
    Spectral range8-14um
    NETDLess than 50mk
    Optical Characteristics
    Objective Lens35mm50mm
    Magnification1X1X
    FOV10.6°×8.0°7.4°×5.6°
    Close-up range5m5m
    Functions
    Palette10 optional
    Startup timeLess than 5 seconds
    Image EnhancementDDE
    Contrast and BrightnessAGC
    Display
    TypeOLED
    Resolution1024×768
    Power Supply
    Battery Type2XCR123
    External Power Supply5v micro USB
    Battery Life5h
    Physical Characteristics
    Weight without batteries435g465g
    Size150mm×61mm×67mm162mmx61mmx67mm
    Environment Compatibility
    Water ProofIP66
    Operation Temperature—25°C~+50°C—25°C~+50°C
    Storage Temperature—40°C~+70°C—40°C~+70°C
    Shock Tolerance1200g/2ms

    We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.


    It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
