Brand Name : | CONO |
Model Number : | Orion335C |
Certification : | ISO,CE,ROSH |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 10000 PCS PER YEAR |
Delivery Time : | 7-30 Days |

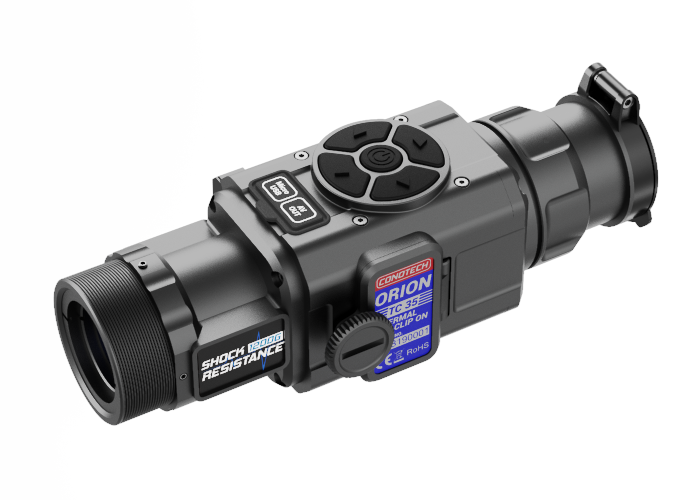

The Clip Series was designed as an attachment for any type of the standard day scope.
Advantages:
High Image Quality With Ultraclear Mode
NO ZEROING is needed just CLAMP&SHOOT.
The high-performance detector and the advanced image processing create brilliant and sharp images.
And the high contrast AMOLED micro display with 1024*768 resolution offers a crisp image and vivid colors. The display ensures excellent image quality and flawless performance even in freezing temperatures.
Built-in Ultraclear mode for bad weather such as heavy fog and raining, it will be more sensitive and get more details.
Technical Data Sheet of Orion clip on | ||
Orion335C | Orion350C | |
Detector | ||
Type | Uncooled | |
Resolution | 384×288 | |
Frame Rate | 50Hz | |
Pitch | 17μm | |
Spectral range | 8-14μm | |
NETD | less then 50mk | |
Optical Characteristics | ||
Objective lens | 35mm | 50mm |
Magnification | 1.4x | 2.0x |
FOV | 10.6°×8.0° | 7.4°×5.6° |
Close-up range | 5m | |
Eye Relief | 60mm | |
Dioptre Adjustment | -5D-4D | |
Functions | ||
Zoom | 2x/4x/PIP | |
Palette | 10 optional(can be customized) | |
Startup time | less than 5 seconds | |
Startup image | Can be customized | |
Menu and information | GUI(Can be customized) | |
Image Enhancement | DDE | |
Contrast and Brightness | AGC | |
Online update | Both code and GUI resources | |
reticle type | 5 optional(Can be customized) | |
ballistic and zeroing | 5 types can be created by user | |
Range finder | Software Approximate ranging | |
Display | ||
Type | OLED | |
Resolution | 1024×768 | |
Power Supply | ||
Battery | 2×CR123 | |
External Power Supply | 5V micro USB | |
Operation Time | 5h with WIFI OFF 2h with WIFI ON |
![]() |
