    5 Palettes Optional Ergonomic 9Hz Portable Thermal Imager

    Ask Lasest Price
    Brand Name : CONO
    Model Number : THH18
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

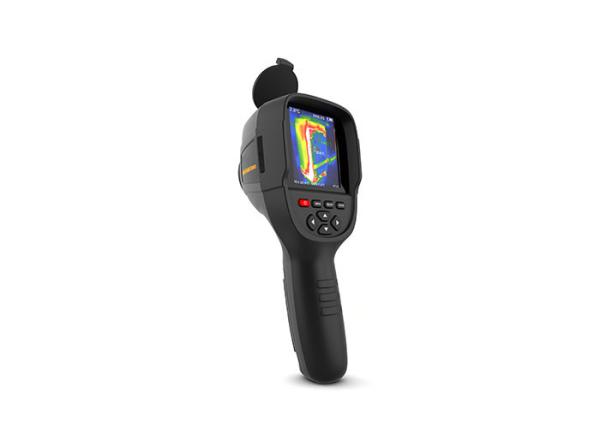

    5 Palettes Optional Ergonomic 9Hz Portable Thermal Imager

    Handheld Imaging Camera THH18 Portable Thermal Imager HT18 220*160 High Resolution THH18thermal imager in stock.​


    Shining Points:
    —— 3.2'' full color screen, allows for detailed showing of infrared generated images;
    —— 220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
    —— 20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
    —— 5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
    —— Automatic setting: 5 mintues/20 minutes/ not power off automatically;
    —— Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
    —— Wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
    —— Seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
    —— Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
    —— Ergonomic handle, which can be used and held comfortably.

    ModelTHH-18
    Display screen3.2 ″ full angle TFT display screen
    Infrared image resolution220*160
    visible image resolution300,000 pixel
    Field angle/shortest focus length27°x35°/0.15m
    Thermal sensitivity0.07℃
    Temperature measurement range-20℃~300℃(-4℉~572℉)
    Measurement accuracy±2% digital/±2 ℃
    EmissivityAdjustable from 0.01 to 1.0
    Frame rate of thermal images9Hz
    Wavelength coverage8-14um
    Focus modeFixed
    Color paletteRainbow, iron oxide red, cold color, black & white, white & black
    View optionThe integration of thermal image with 25% step length and visible image.
    Storage mediumBuilt-in 3G (above 20 thousand image stored)
    File formatJPG
    USBMicro USB 2.0
    Power supplyBuilt-in rechargeable 18650 battery
    Automatic power-off timeSelectable: 5 minutes/20 minutes/ not power off automatically
    Product size(length × width × height)90mm×105mm×223mm
    Product weight389g
    Work temperature0℃to 45℃
    Storage temperature-20℃ to 60℃
    Relative humidity< 85%RH

    Quality 5 Palettes Optional Ergonomic 9Hz Portable Thermal Imager for sale
