    18650 Battery Powered Ergonomic Handheld Digital Thermal Imager

    Ask Lasest Price
    Brand Name : CONO
    Model Number : THH18
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

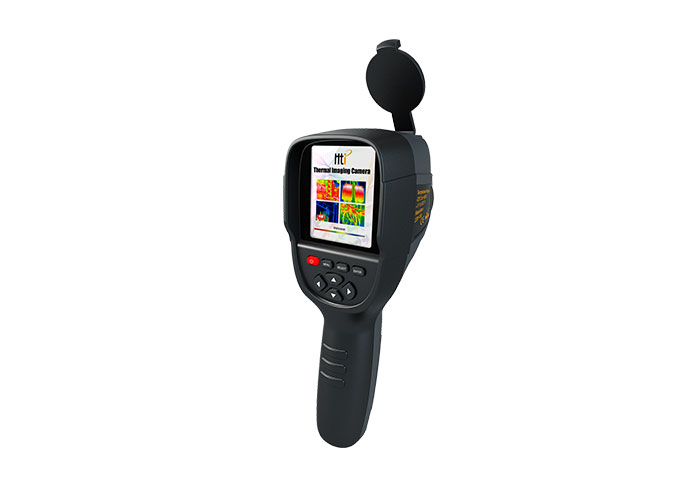

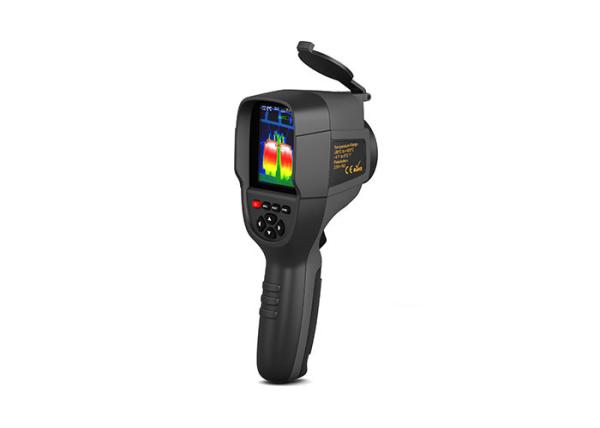

    18650 Battery Powered Ergonomic Handheld Digital Thermal Imager

    Wholesale hand-held digital thermal imager auto perfect time buildings thermal imaging camera THH-18

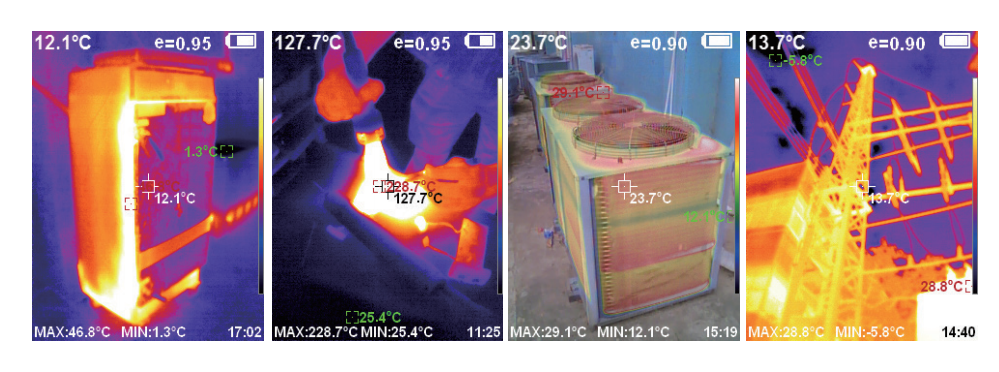

    THH18 thermal camera is widely use in car repairing,floorheating maintainence,short-circuit detecting of power box, buildingleakage detecting,electrical product maintainence, fire fighting,archaeology, geology, energy, electronic manufacture, etc. It is the ideal selection for electrician,maintenance person and technicians to find the hot spot or cold spot(problem area) quickly.


    Shining Points:
    —— 3.2'' full color screen, allows for detailed showing of infrared generated images;
    —— 220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
    —— 20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
    —— 5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
    —— Automatic setting: 5 mintues/20 minutes/ not power off automatically;
    —— Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
    —— Wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
    —— Seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
    —— Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
    —— Ergonomic handle, which can be used and held comfortably.

    ModelTHH-18
    Display screen3.2 ″ full angle TFT display screen
    Infrared image resolution220*160
    visible image resolution300,000 pixel
    Field angle/shortest focus length27°x35°/0.15m
    Thermal sensitivity0.07℃
    Temperature measurement range-20℃~300℃(-4℉~572℉)
    Measurement accuracy±2% digital/±2 ℃
    EmissivityAdjustable from 0.01 to 1.0
    Frame rate of thermal images9Hz
    Wavelength coverage8-14um
    Focus modeFixed
    Color paletteRainbow, iron oxide red, cold color, black & white, white & black
    View optionThe integration of thermal image with 25% step length and visible image.
    Storage mediumBuilt-in 3G (above 20 thousand image stored)
    File formatJPG
    USBMicro USB 2.0
    Power supplyBuilt-in rechargeable 18650 battery
    Automatic power-off timeSelectable: 5 minutes/20 minutes/ not power off automatically
    Product size(length × width × height)90mm×105mm×223mm
    Product weight389g
    Work temperature0℃to 45℃
    Storage temperature-20℃ to 60℃
    Relative humidity< 85%RH
