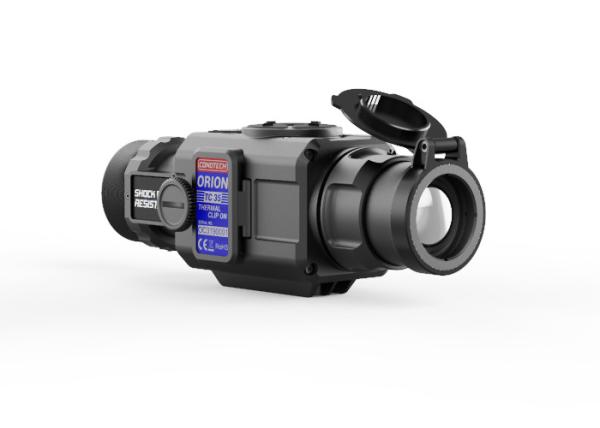

Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution

    Buy cheap Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution from wholesalers

    Buy cheap Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution from wholesalers
    • Buy cheap Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution from wholesalers

    Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution

    Ask Lasest Price
    Brand Name : CONO
    Model Number : Orion335C
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

    Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution

    Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution

    The Orion introduces thermal imaging to any standard daytime optic—no re-zeroing needed.


    Fastened in front of a magnified sight quick-release mount, it brings state-of-the-art thermal technology to an existing set-up in seconds.


    Detect targets in complete darkness or through atmospheric obscurants without the need to remove daytime optics.


    Features:


    Precise Alignment

    Precision optical alignment is essential for any front sight system to work properly. All NightSeers are adjusted on the laboratory test equipment with accuracy from 0.1 mrad to 0.3 mrad. The manufacturing process of the NightSeers ensures the shooting precision tolerance within 3 to 7 cm at 100 m.


    Compatible With Various Day Optics

    Attachment allows turning the majority of day sights with lens diameters from 42mm to 65mm into a thermal sight, ensuring the constant position of POI. Quick-release bayonet mount allows remove it from the scope in seconds.


    Wide Range of Operating Temperatures

    The ability to operate in normal mode at sub-zero temperatures is due to the use of a frost-resistant AMOLED 1024x768 display featuring fast response and provides a crisp image when observing a dynamic object.


    Technical Data Sheet of Orion clip on
    Orion335COrion350C
    Detector
    TypeUncooled
    Resolution384×288
    Frame Rate50Hz
    Pitch17μm
    Spectral range8-14μm
    NETDless then 50mk
    Optical Characteristics
    Objective lens35mm50mm
    Magnification1.4x2.0x
    FOV10.6°×8.0°7.4°×5.6°
    Close-up range5m
    Eye Relief60mm
    Dioptre Adjustment-5D-4D
    Functions
    Zoom2x/4x/PIP
    Palette10 optional(can be customized)
    Start uptimeless than 5 seconds
    Startup imageCan be customized
    Menu and informationGUI(Can be customized)
    Image EnhancementDDE
    Contrast and BrightnessAGC
    Online updateBoth code and GUI resources
    reticle type5 optional(Can be customized)
    ballistic and zeroing5 types can be created by user
    Range finderSoftware Approximate ranging
    Display
    TypeOLED
    Resolution1024×768
    Power Supply
    Battery2×CR123
    External Power Supply5V micro USB
    Operation Time5h with WIFI OFF
    2h with WIFI ON
