    17um Pitch Infrared Thermal Imaging Night Vision Monocular Handheld

    Ask Lasest Price
    Brand Name : CONO
    Model Number : Tracer 35LRF
    Certification : ISO,CE,ROSH
    Price : Negotiable
    Payment Terms : L/C, T/T, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS PER YEAR
    Delivery Time : 7-30 Days
    • Product Details
    • Company Profile

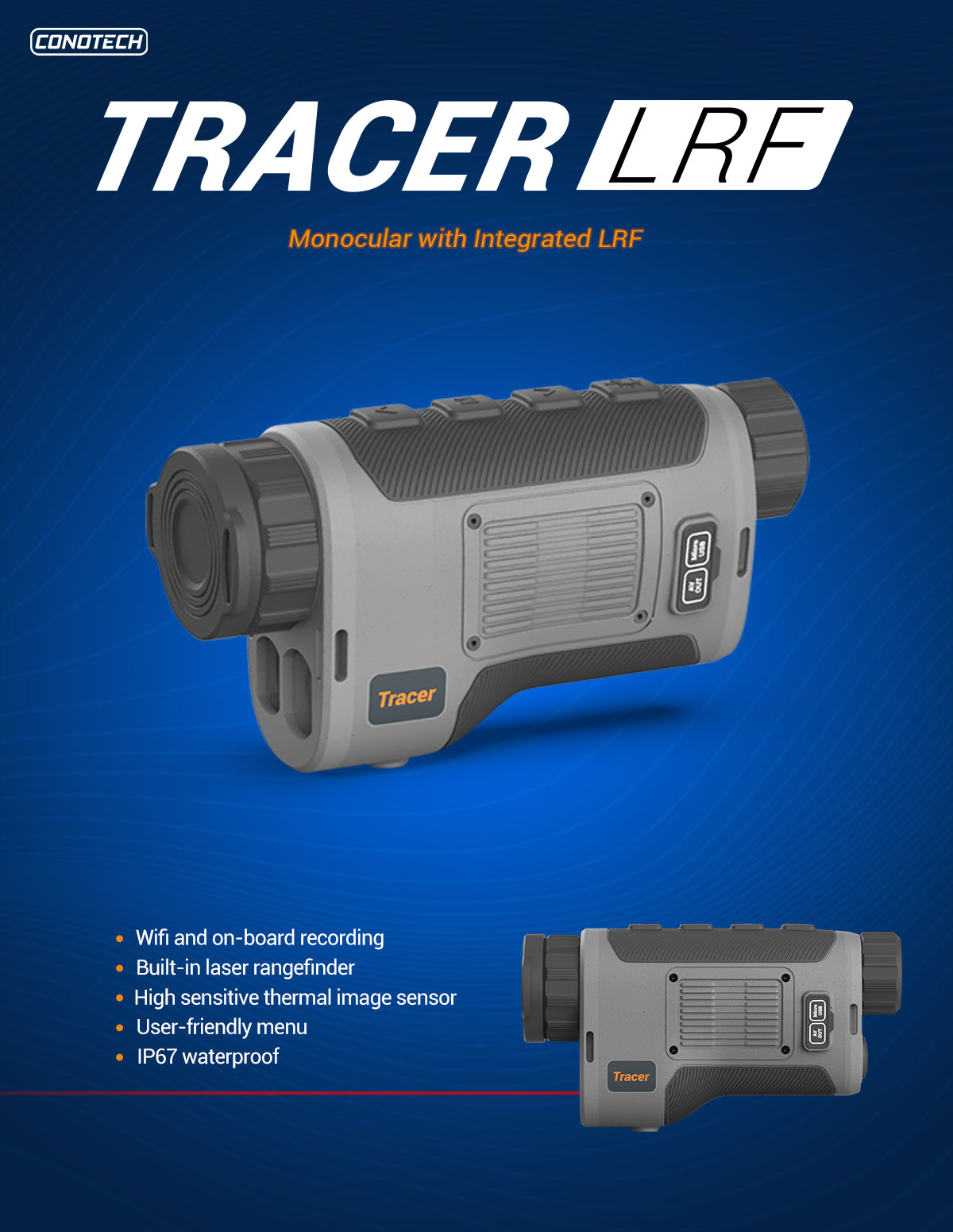

    17um Pitch Infrared Thermal Imaging Night Vision Monocular Handheld

    High Resolution Handheld Infrared Thermal Imaging Night Vision Monocular

    Tracer series has rugged, yet lightweight housing. It perfectly fits into user’s hand. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.


    High Image Frequency

    Due to the high image frequency (50 Hz) it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).

    User-Friendly Interface

    Polaris is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.


    Wide Range of Operation Temperatures

    Polaris is effective for the use in low temperatures (-40°C) thanks to the frost-resistant AMOLED display employed in the unit (image remains the same as when viewing at positive

    Technical Data Sheet
     TracerLRF 35TracerLRF50
    Detector
    TypeUncooled Vox
    Resolution384×288
    Frame rate50Hz
    Pitch17μm
    Spectral range8-14μm
    NETDLess than 35mk
    Optical Characteristics
    Objective lens35mm50mm
    Magnification2.7x3.9x
    FOV10.6°×8.0°7.4°×5.6°
    Close-up range5m
    Dioptre adjustment-5D-4D
    Functions
    ZoomSmooth digital zoom
    Palette5 optional(can be customized)
    Start up timeLess than 5 seconds
    Start up imageCan be customized
    Menu and informationGUI(Can be customized)
    Image enhancementDDE
    Contrast and brightnessAGC
    Online updateBoth code and GUI resources
    Display
    TypeOLED
    Resolution1024×768
    Power Supply
    BatteryBuilt-in lithium battery
    External power supply5V micro USB
    Battery life8h+
    Physical Characteristics
    Weight without battery540g590g
    Size155x50x92mm165x56x92mm
    Environmental Compatibility
    Water proofIP67
    Operating temperature-20℃-50℃
    Storage temperature-40℃-60℃
    Laser Rangefinder
    Safety class for laser equipment
    according to IEC 60825-1:2014
    1
    Measuring range5-1000m
    Measurement accuracy±1m
